GlowCap End Seal Kit
GC-ESK is a field-installed end seal kit to terminate 120v and 240v self-regulating heating cables after the cable has been installed in position. This kit includes materials for one GlowCap™ End Seal. Works for cables between 11-13mm wide.
31 in stock
How do I know my heat Cable is working?

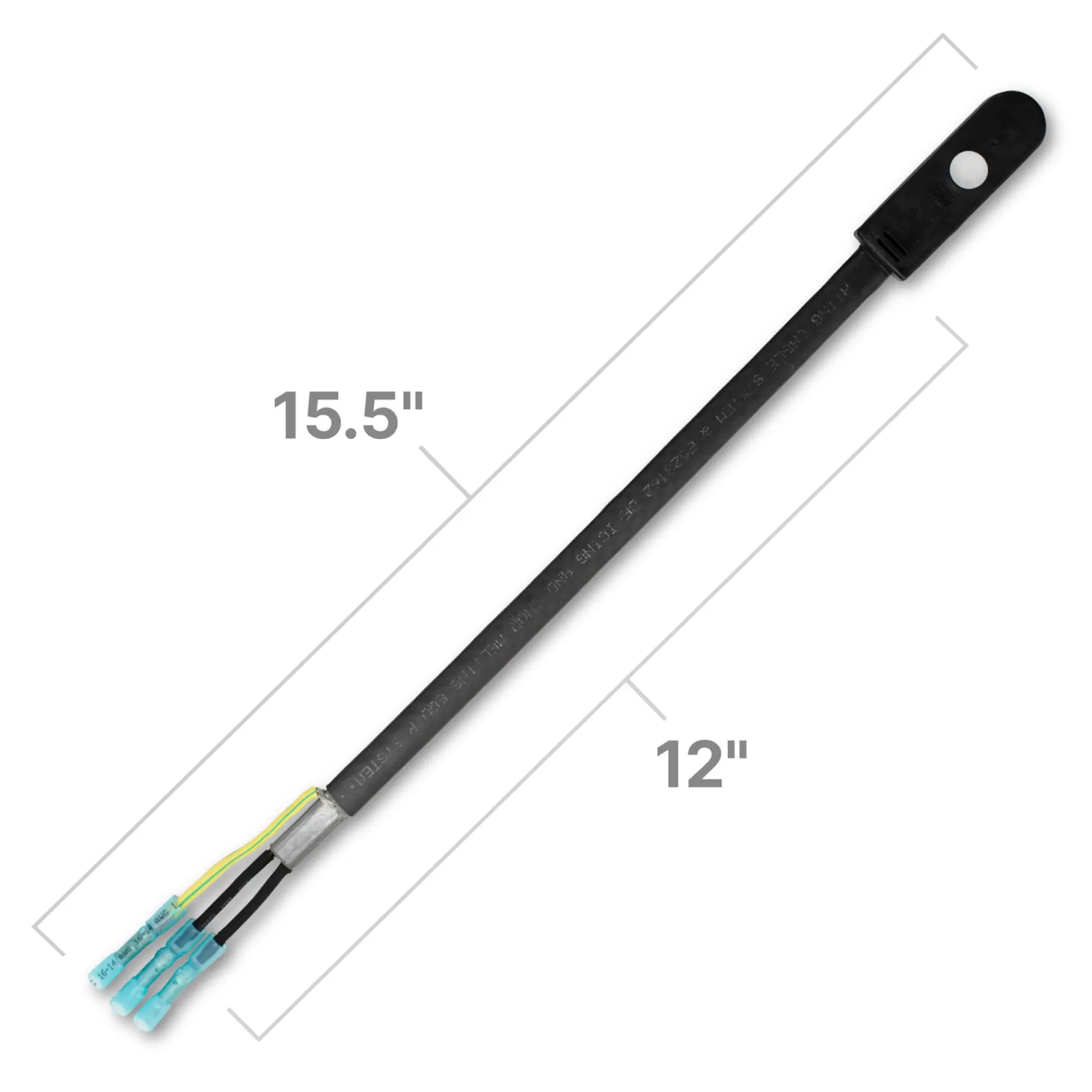

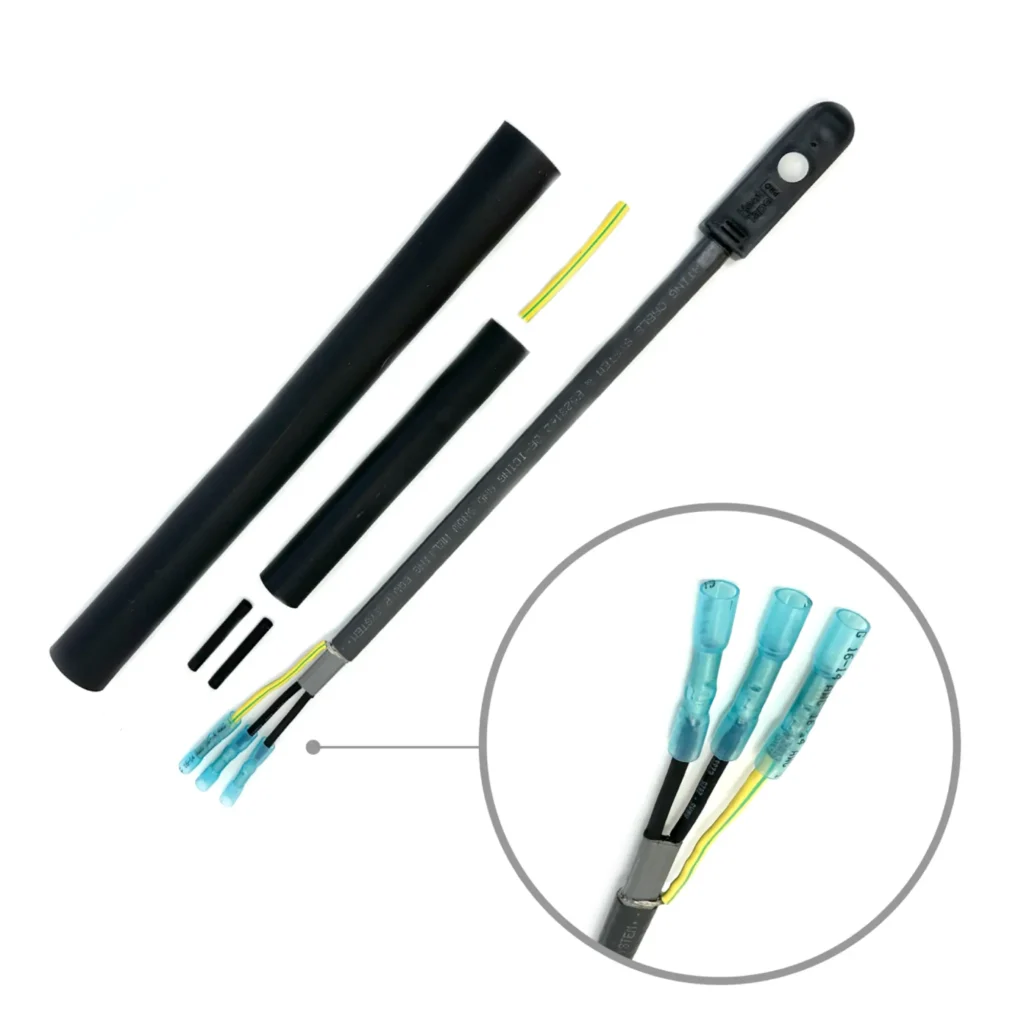

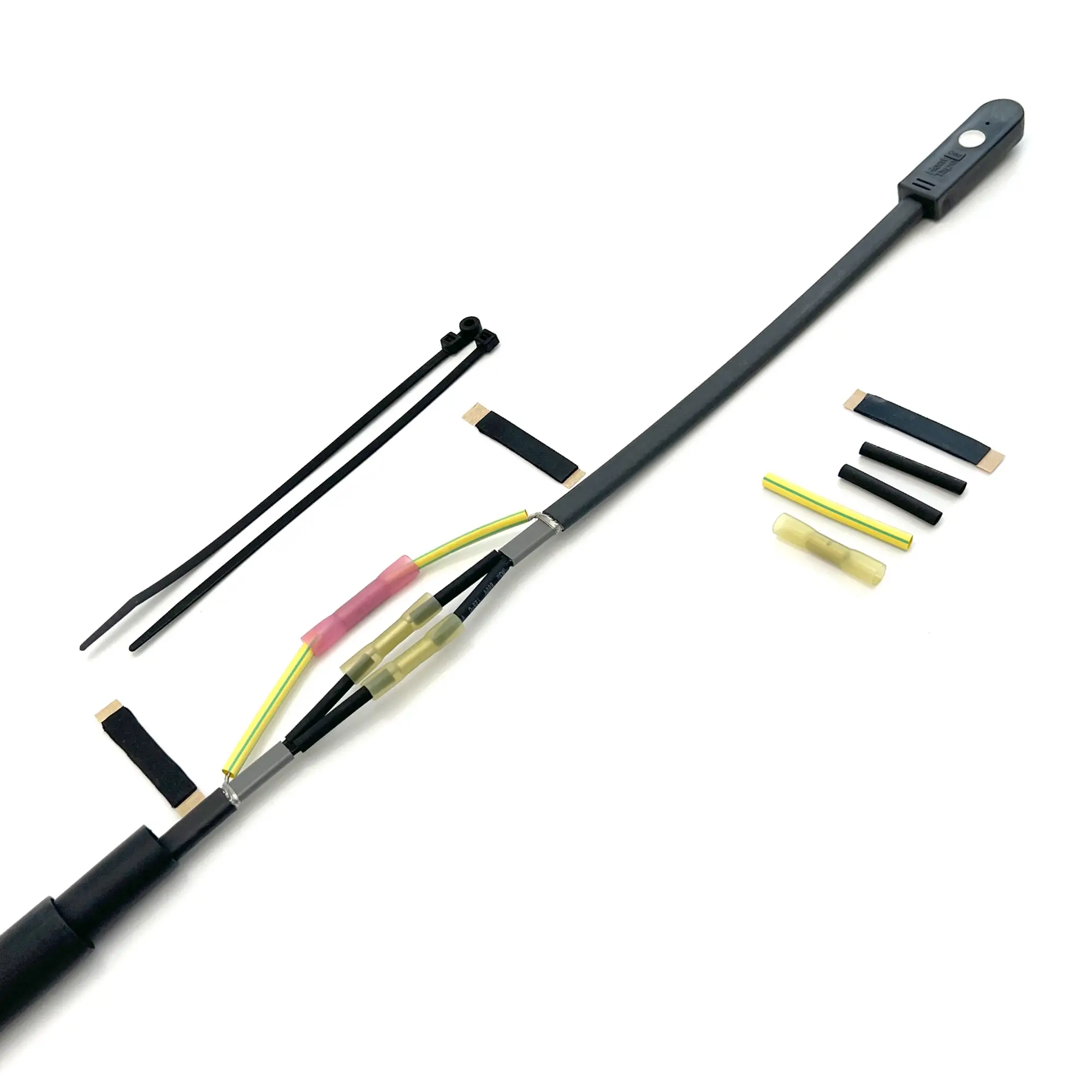

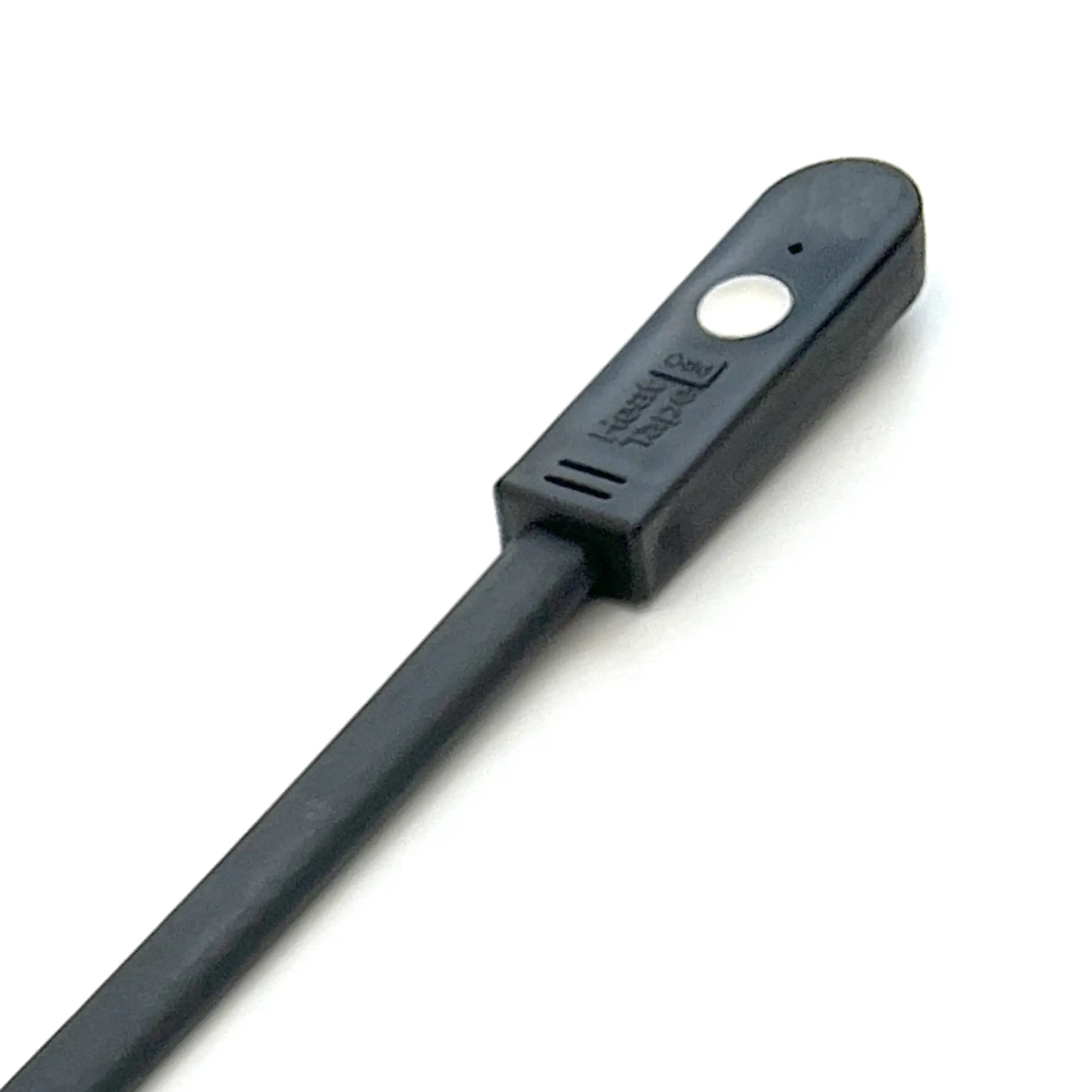

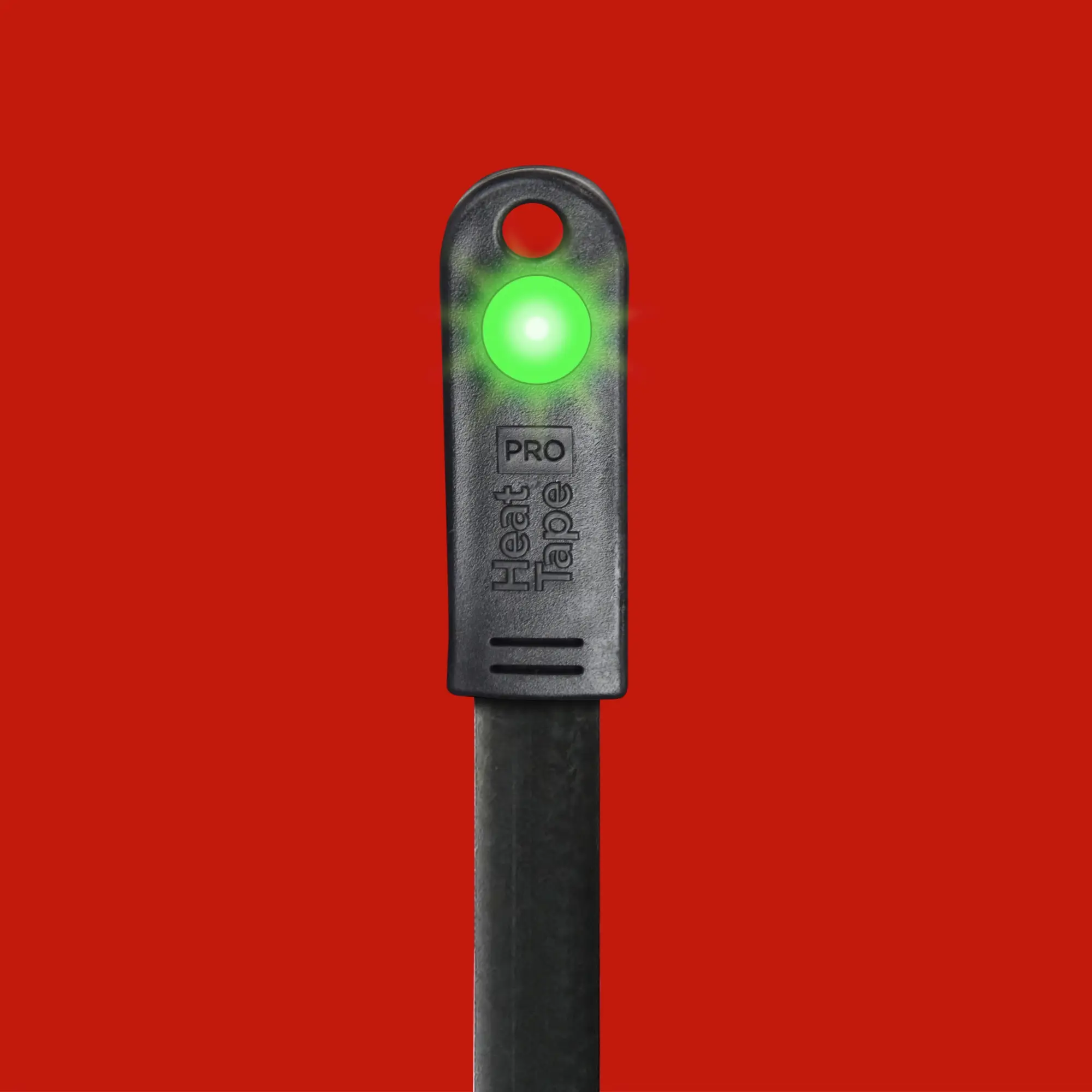

It’s a common question that the GlowCap™ End Seal Kit was designed to answer from a distance. If the green indicator light is on, your cable is working. Installing the GlowCap™ End Seal kit on self-regulating heat cable takes about five minutes total. The kit includes a 12” section of 6 watt HeatTapePro™ Self-Regulating Heat Cable that is factory terminated with a GlowCap™, which is an injection molded body with an embedded 100,000 hour UL-Listed LED. The other end of the assembly is prepared and ready to be crimped onto the stripped end of any 10-13mm self-regulating heat cable.
The GC-ESK increases system reliability significantly because cable function can be verified in seconds with a quick glance at the GlowCap™. This is particularly helpful on cable systems that are inaccessible, such as on high locations
Documents, Manuals, Specification Sheets
The following documents provide information regarding GlowCap End Seal Kit (SKU: GC-ESK-12). Documents open in a new tab and can be downloaded or printed.
Documents:
Spec Sheet - GlowCap End Seal Kit
SKU: GC-ESK-12: Product Dimensions & Specifications
Product Manual - GlowCap End Seal Kit
SKU: GC-ESK-12: Installation, Usage, Recommendations
Quick Product Info
| Product Title: | GlowCap End Seal Kit |
|---|---|
| Description: | |
| Retail Site Link: | GlowCap End Seal Kit Retail Page → |
| Product SKU: | GC-ESK-12 |
| Availability: | instock |
Material Description:
*See Documents tab for more specifications
