Remote Sensor Extension Kit (EX-50)
Our Remote Precipitation Sensor Extension Kit extends the DS8 and DS9 remote precipitation sensors up to an additional 50 feet from the controller enclosure and includes an IP67 watertight connector
- 20 AWG 6 wire cable
- Shielded for high noise immunity
- 300 volt insulation rating for safe installation next to line voltage wires
- Requires no special tools for installation
- Shielded for high noise immunity
14 in stock

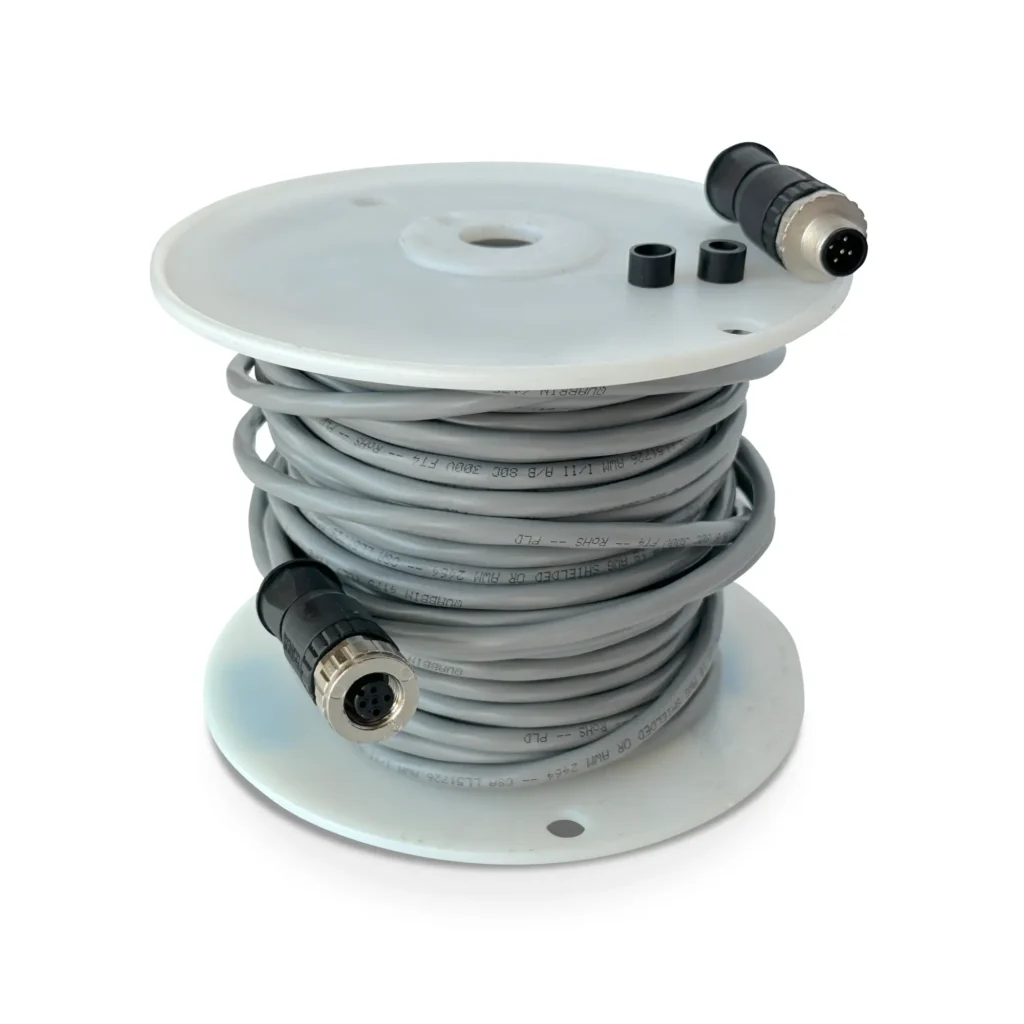

The EX-50 is manufactured from cable identical to that used in the remote precipitation sensor. Matching outside diameter means a solid, watertight seal when passed through the top-mount strain relief of the sensor enclosure. The cable comes pre-terminated with a watertight circular connector. The included mating connector can be installed on the end of the sensor cable using standard hand tools. No special crimp tools or soldering is required! And, once mated, the M12 circular connectors provide a rugged IP67-rated watertight connection. The special connector provided also allows extending the cable shield, improving noise immunity and preventing false triggering.
Documents, Manuals, Specification Sheets
The following documents provide information regarding Remote Sensor Extension Kit (EX-50) (SKU: EX-50). Documents open in a new tab and can be downloaded or printed.
Documents:
Spec Sheet - Remote Sensor Extension Kit (EX-50)
SKU: EX-50: Product Dimensions & Specifications
Product Manual - Remote Sensor Extension Kit (EX-50)
SKU: EX-50: Installation, Usage, Recommendations
Quick Product Info
| Product Title: | Remote Sensor Extension Kit (EX-50) |
|---|---|
| Description: | |
| Retail Site Link: | Remote Sensor Extension Kit (EX-50) Retail Page → |
| Product SKU: | EX-50 |
| Availability: | instock |
Material Description:
*See Documents tab for more specifications
